YC-1200-4 DTF Printer: 4 x Epson I3200 Printhead

120cm/48" print width

4color(CMYK+W, YC-1201) & 9 color(CMYK + Gradient/YC-1202 or Fluoresent/YC-1203+W）

Previou：Previous Product Next：Next Product

Details
Specifications
Package

YC-1200-4 DTF large format DTF printer multiple color solutions: CMYK+W 5 color solution; CMYK+W+LC/LM/LK/LLK 9-color solution; CMYK+W+FM/FY/FG/FR 9color solution, a new color management system, which solves the problem of noise in printing patterns in the past. And the gradient/fluorescent area has better performance than before; the nozzle protection device can effectively protect the nozzle during the printing process and reduce the probability of physical damage. The new tension system can automatically roll the film to ensure the smoothness and stability of the film, and also reduce the probability of damage to the nozzle.


Specifications of YC-1200-4 Printer
Nozzle(Print head)	EPSON I3200 4PCS
Print Width	<1200mm/48" (inches)
Media	DTF Film
RIP Software	Maintop/PP
Temperature/Humidity	20-30°C 45~65%
Small coil core diameter / thickness	Inner diameter is 76mm and thickness is 8mm
Power	400W
Printing Speed	4 Pass 30m2/h ; 6 Pass 25m2/h
Machine Size	2390x820x1620mm
Machine Weight	192kg
Packing Size	2630x840x750mm
Packing Weight	250kg

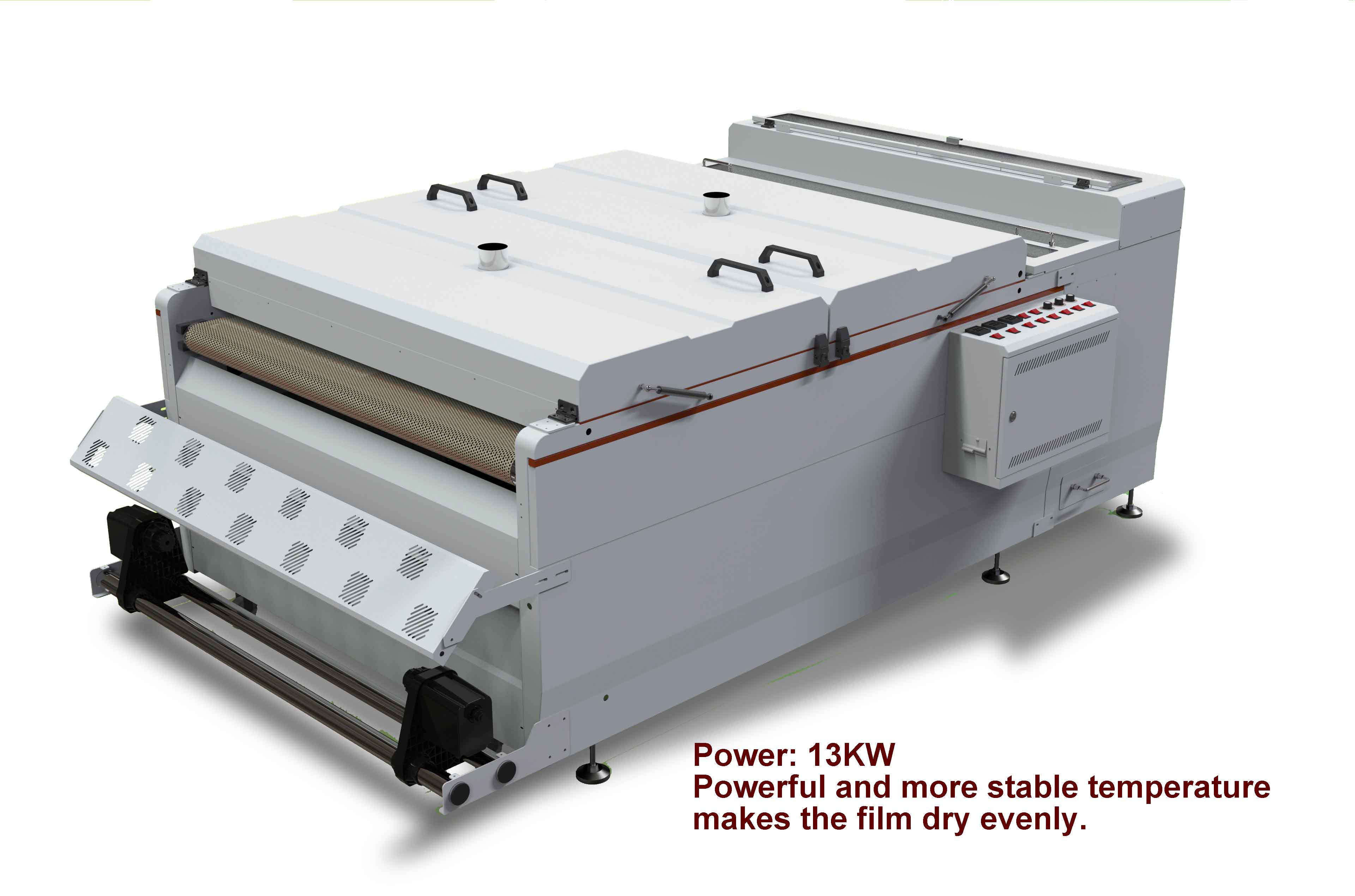

Specifications of 1200-4 Dryer
Rated voltage	220V±10%
Rated current	60A
Rated power	13KW
Energy consumption	8-13KW
Net weight of equipment	627KG
Gross weight of equipment	695KG
Equipment size	304317721076mm
Wooden box size	298018801236mm
